Home: Hoses And Bellows

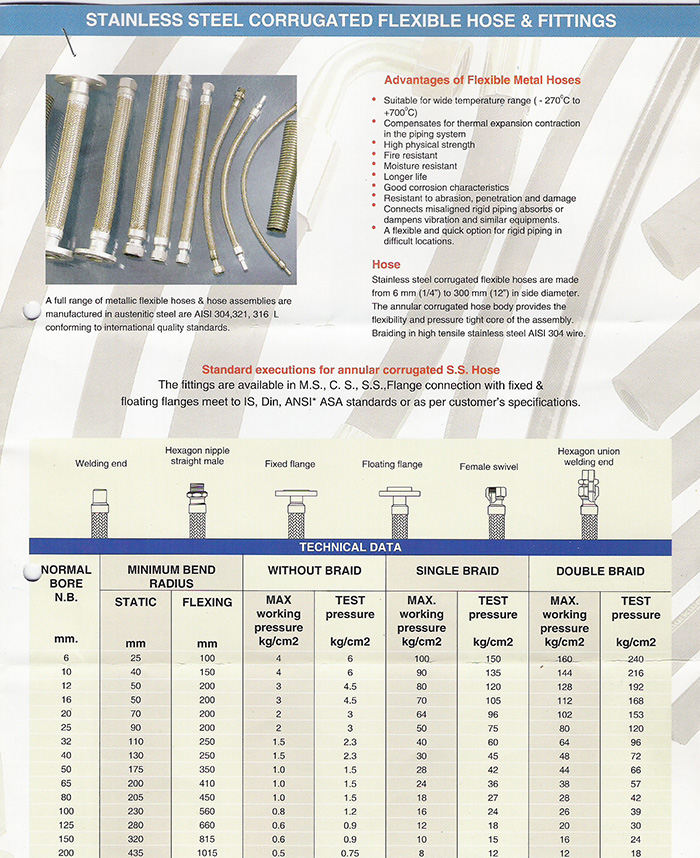

Nominal Size
DN
Without Braid
Single Braid
Double Braid
Minimum Bend Radius
Max. Working Pressure Test Pressure
 Max. Working Pressure Test
Pressure
 Max.. Working Pressure Test Pressure
 Static Dynamic
Inch
mm
Kg/cm2
Kg/cm2
Kg/cm2
Kg/cm2
Kg/cm2
Kg/cm2
mm
mm
1/4
6
4
6
100
150
160
240
25
100
3/8
10
4
6
90
135
144
216
40
150
1/2
12
3
4.5
80
120
128
192
50
200
5/8
16
3
4.5
70
105
112
168
50
200
3/4
20
2
3
64
96
102
153
70
200
1
25
2
3
50
75
80
120
90
200
1.1/4
32
1.5
2.3
40
60
64
96
110
250
1.1/2
40
1.5
2.3
30
45
48
72
130
250
2
50
1
1.5
28
42
44
66
175
350
2.1/2
65
1
1.5
24
36
38
57
200
410
3
80
1
1.5
18
27
28
42
205
450
4
100
0.8
1.2
16
24
26
39
230
560
5
125
0.6
0.9
12
18
20
30
280
660
6
150
0.6
0.9
10
15
16
24
320
815
8
200
0.5
0.75
8
12
12
18
435
1015

Note :
The above technical details are subject to change without notice.
We can also supply the above hoses for higher pressures.
The above values apply only to braided hoses and assemblies at ambient temperature of 20 Deg. C.
The burst pressure is 4 times of the max. working pressure.
